Boya BY-M1DM Dual Omni Directional Lavalier Mic
0
Shipping is calculated at checkout
Description

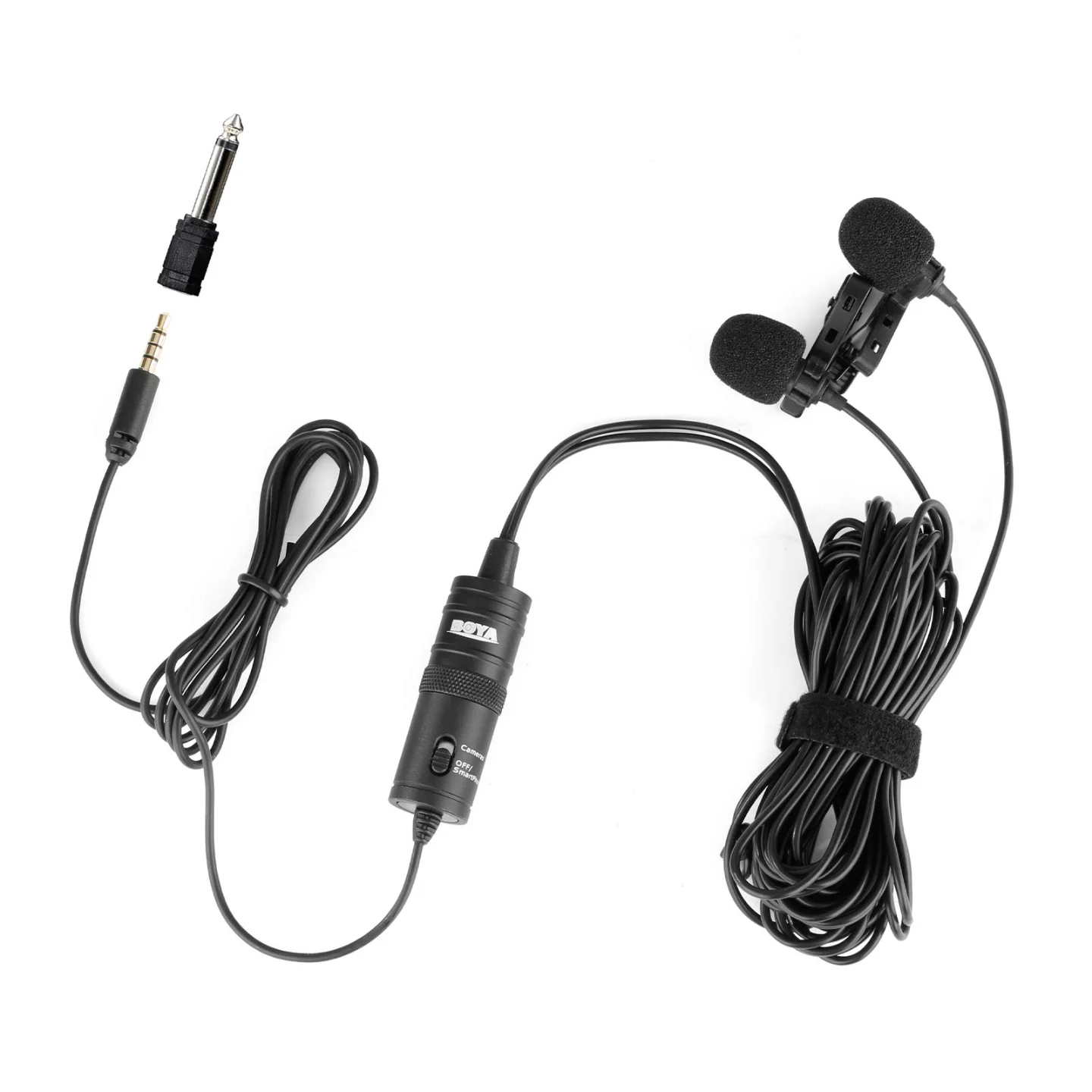

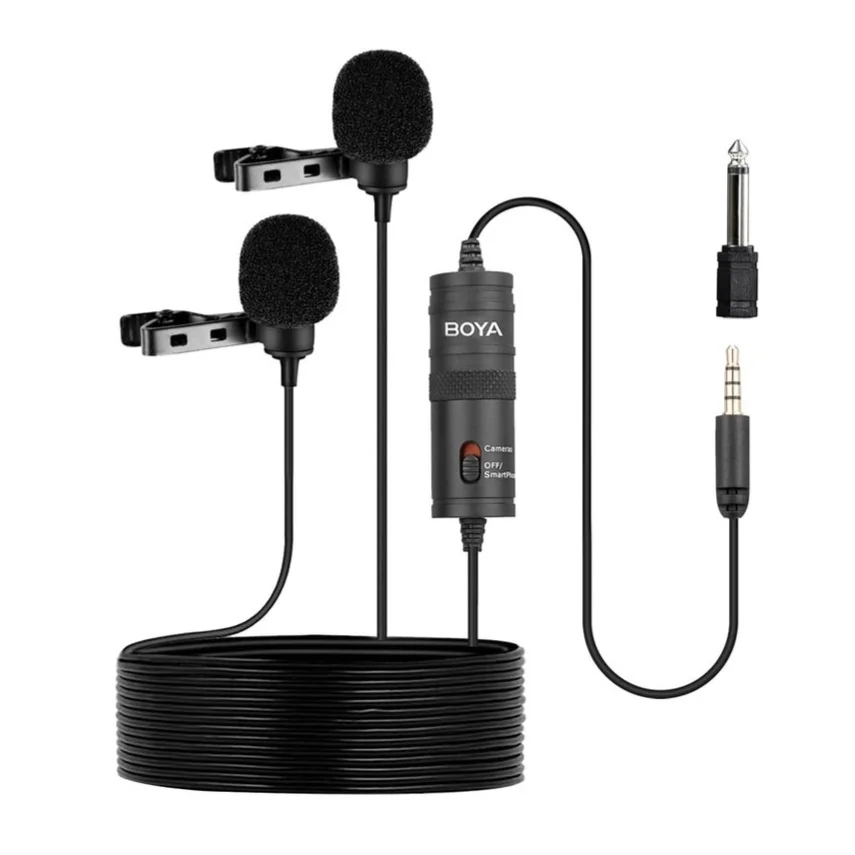

Boya BY-M1DM Dual Omnidirectional Lavalier Microphone
Twin-Lapel Mic Setup for Dual-Channel Recording
The Boya BY-M1DM is a dual-lapel omnidirectional mic kit designed for dual-speaker interviews, on-camera dialogues, or any scenario that requires two-channel audio. Each microphone features an omnidirectional condenser capsule for accurate, natural sound capture. With a single 3.5 mm TRRS connector, it splits into two mics using a Y-cable, making it ideal for DSLRs, camcorders, and smartphones. The 6 m cable for each mic gives freedom of movement, and the additional 1:2 plug adapter ensures compatibility with both TRRS and TRS inputs. Lightweight, portable, and easy to set up, it enhances your production with real-time dual-track audio.
Brand: Boya
SKU: N/A
Key Specifications
Feature | Details |
|---|---|
Microphone Type | 2 × Electret Condenser, Omnidirectional Lavaliers |
Cable Length | 6 m (20 ft) per microphone |
Connector | 3.5 mm TRRS Y-split cable; includes 1:2 TRRS → 2 × TRS splitter |
Frequency Response | 65 Hz – 18 kHz |
Sensitivity | –30 dB ± 3 dB (0 dB=1 V/Pa @1 kHz) |
SNR | ≥ 74 dB SPL |
Power Option | Powered via camera or smartphone; no battery required |
Accessories | Windscreens, lapel clips (2×), belt clip for Y-cable |
Weight | Approx. 5 g per mic + Y-cable (~36 g) |
Usage | Dual-channel audio capture, interviews, vlogging, mobile journalism |
In the Box
Boya BY-M1DM Dual Lavalier Microphone Kit
Y-Cable with Single TRRS Plug
1:2 Splitter (TRRS to Dual TRS) Adapter
2 × Lapel Clips
2 × Foam Windscreens
Belt Clip for Y-Cable
User Manual / 1-Year Limited Warranty Card
