Denon PMA-800NE 2 Ch. 85W integrated Amplifier
0
Shipping is calculated at checkout
Description

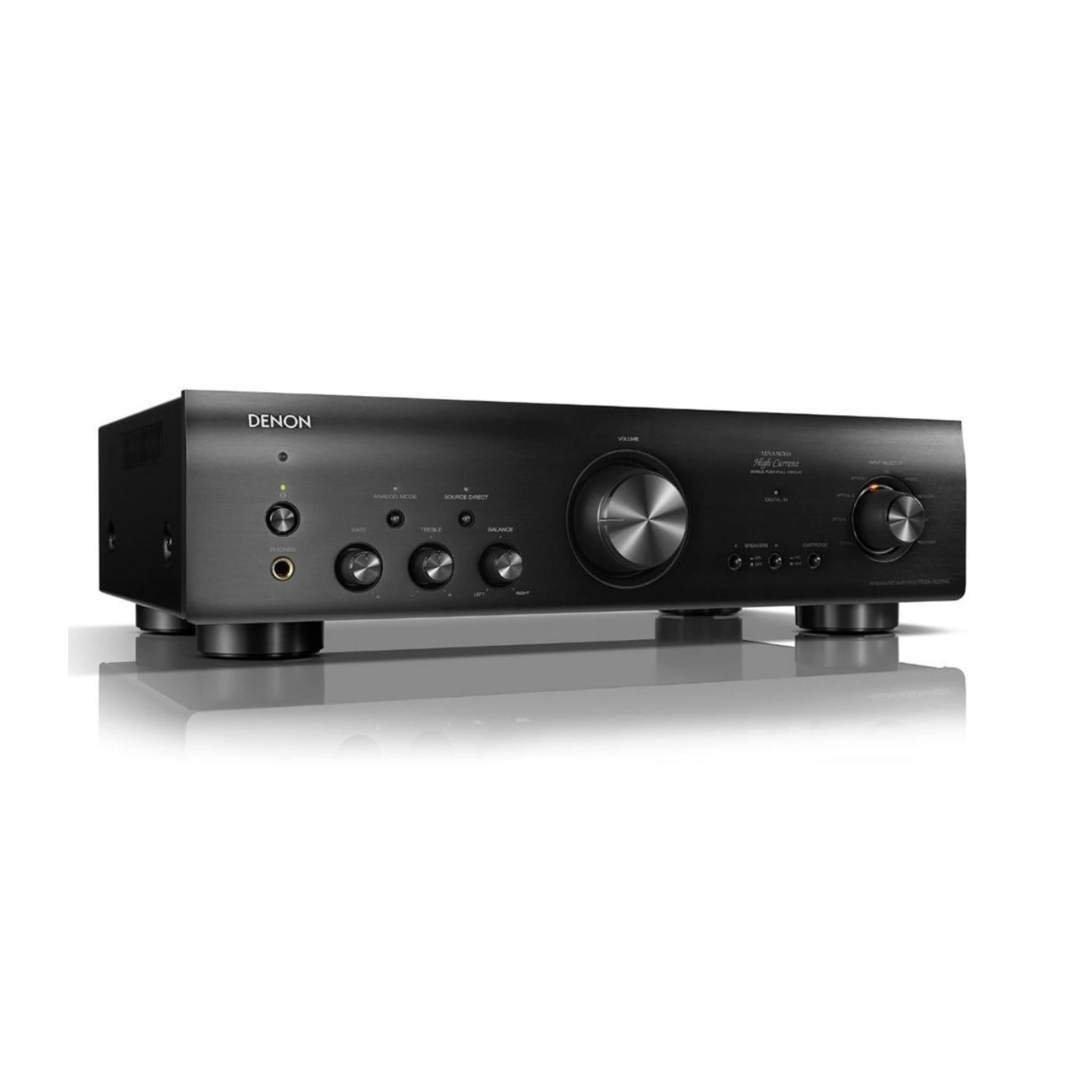

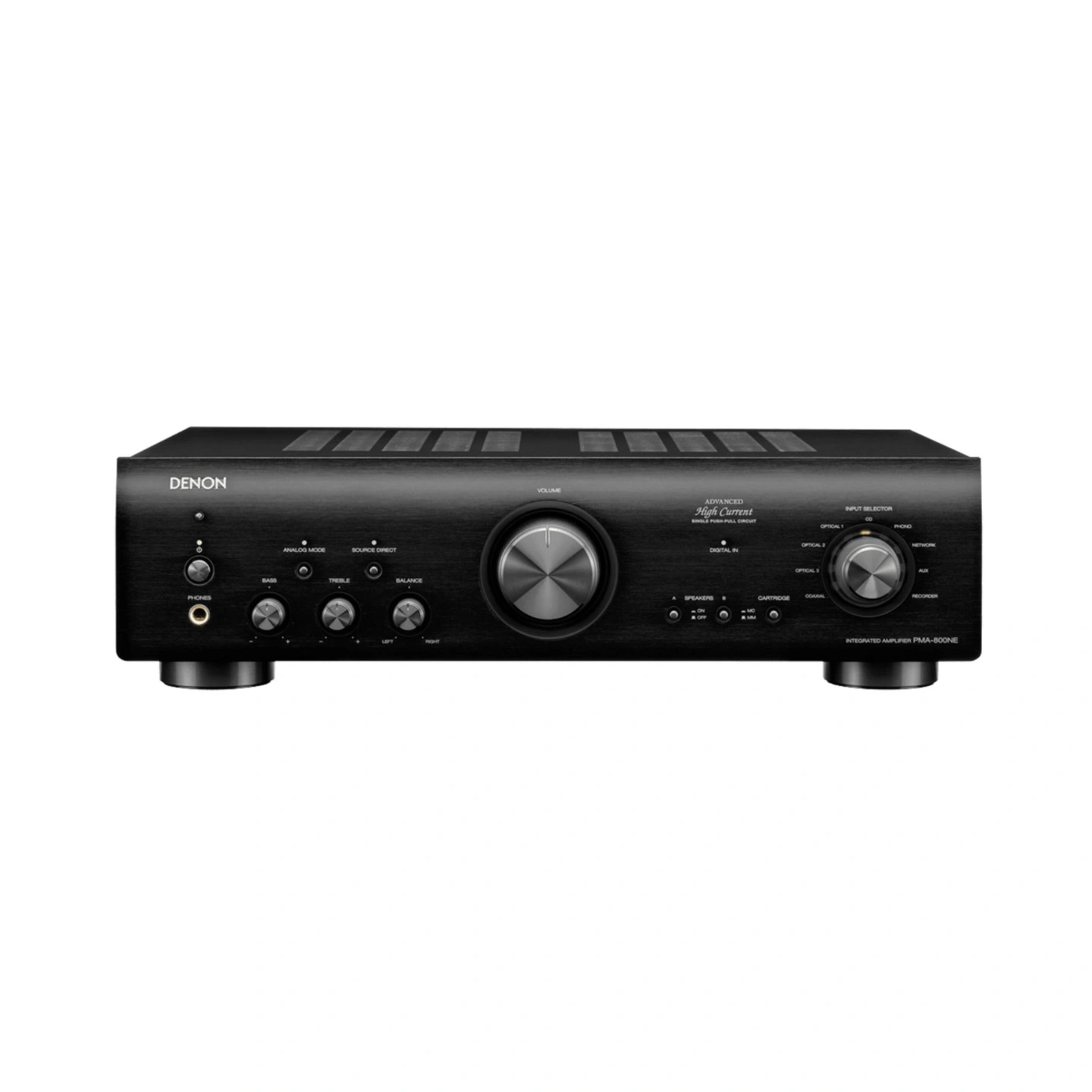

Denon PMA-800NE 2-Channel Integrated Amplifier (85 W/Channel)
Versatile & Powerful Hi-Fi Amp with DAC and Phono Pre-amp
This premium integrated amplifier delivers robust performance and rich connectivity. Engineered with Denon’s Advanced High Current (AHC) push‑pull power circuitry and SLDC chassis for mechanical stability, it offers refined drive with low distortion. Key features include a high-res 192 kHz/24‑bit DAC, support for MM/MC phono cartridges, three optical and one coaxial digital inputs, and an exclusive “Analog Mode” that silences digital circuits for purer analog playback. Whether you’re streaming digital audio or spinning vinyl, it brings clarity, power, and precision to your stereo setup.
Brand: Denon
SKU: N/A
Key Specifications
Feature | Details |
|---|---|
Power Output | 50 W × 2 (8 Ω, 20 Hz–20 kHz, THD 0.07 %) / 85 W × 2 (4 Ω, 1 kHz, THD 0.7 %) |
Total Harmonic Distortion | 0.01 % (at rated output –3 dB, 8 Ω, 1 kHz) |
DAC | 24-bit / 192 kHz D/A converter |

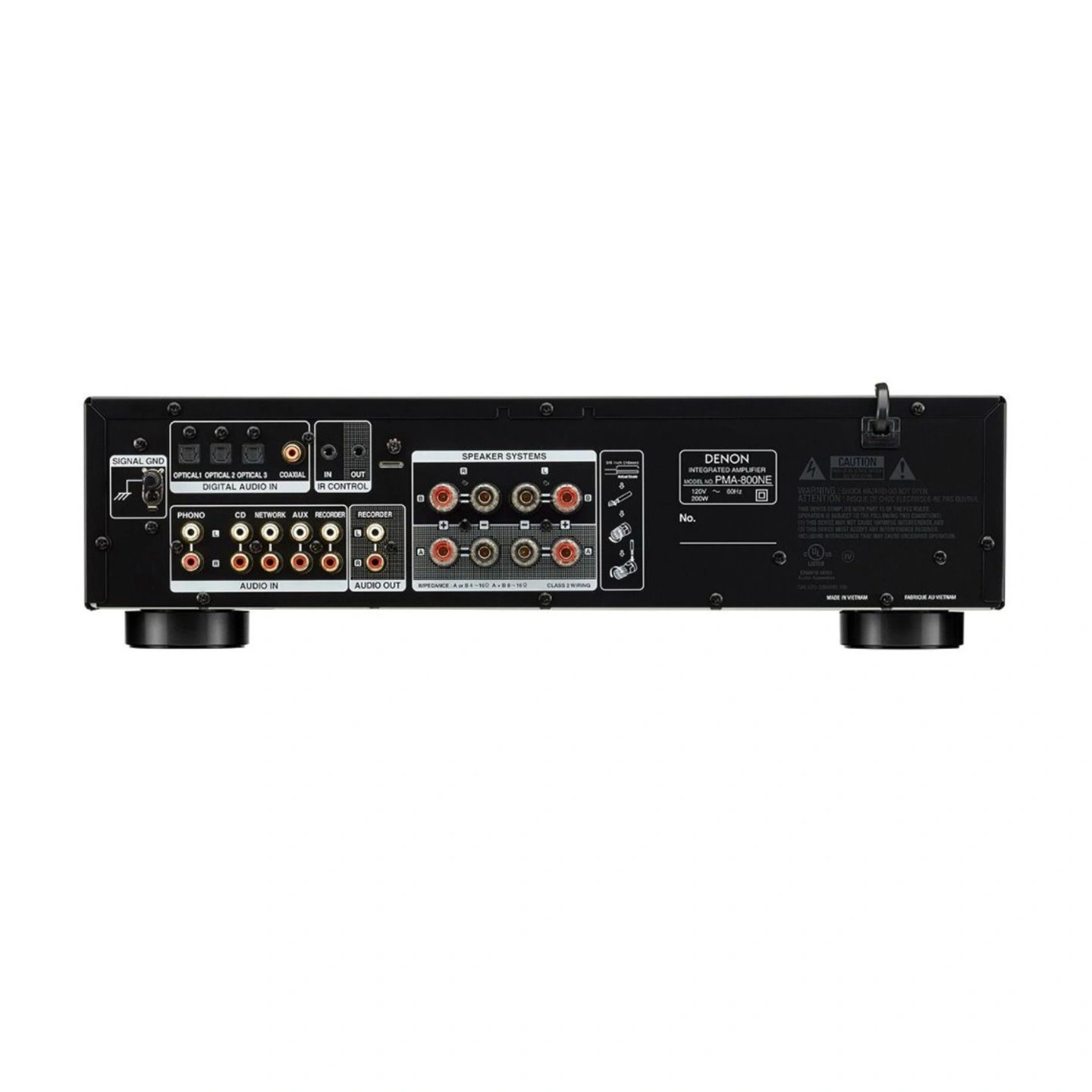

Digital Inputs | 3 × Optical, 1 × Coaxial (PCM up to 24-bit/192 kHz) |
Analog Inputs | Phono (MM & MC), CD, Network, Aux, Recorder |
Phono Pre-amp | Supports Moving Magnet & Moving Coil cartridges |
Signal-to-Noise Ratio | Line: 105 dB / MM: 86 dB / MC: 71 dB |
Tone Control | Bass ±8 dB (100 Hz) / Treble ±8 dB (10 kHz) |
Special Modes | Analog Mode, Source Direct, A/B speaker switching |
Frequency Response | 5 Hz – 100 kHz (0 / –3 dB) |
Power Consumption | 200 W (standby: 0.3 W) |
Dimensions (W×H×D) | 434 × 122 × 307 mm |
Weight | Approx. 7.5 kg |
Warranty | 1-Year Limited Warranty |
In the Box
Denon PMA-800NE Amplifier
Remote Control (RC-1223)
Power Cable
User Manual / Warranty Card
