The KEF Ci160CSds

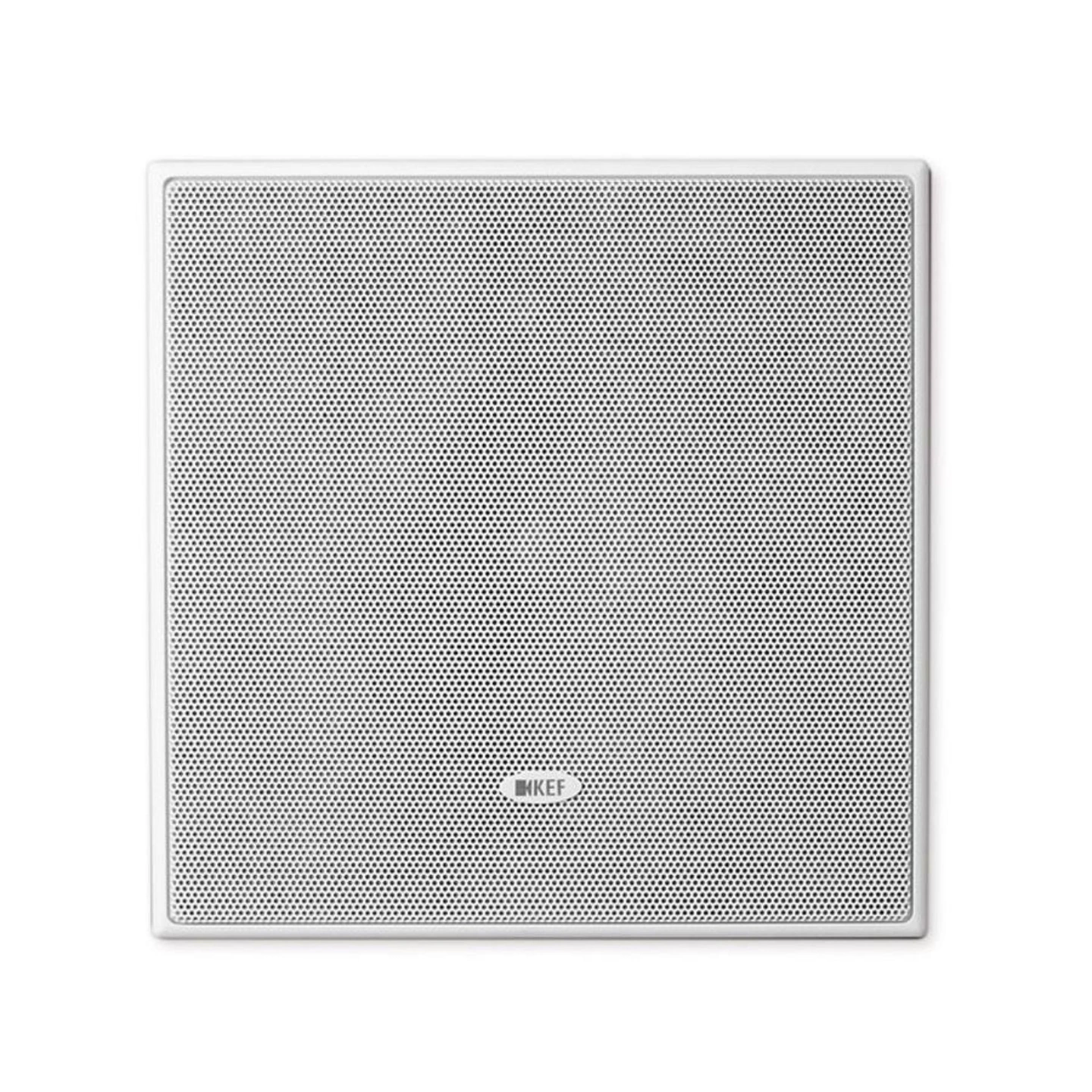

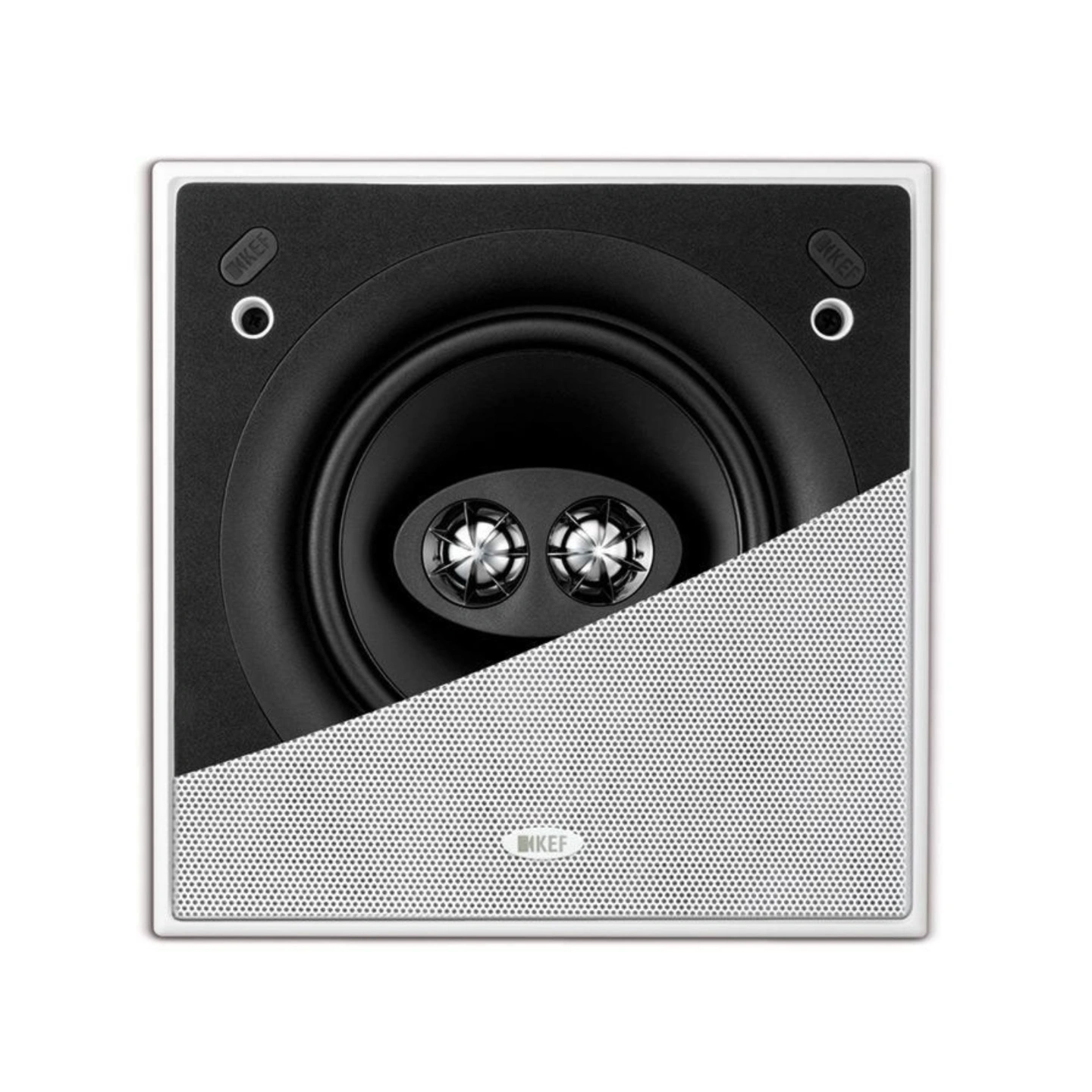

The KEF Ci160CSds is an innovative square-format in-ceiling (or in-wall) speaker that recreates stereo audio from a single flush-mounted unit—ideal for spaces where installing two speakers isn’t practical. It delivers full-range sound using a dual 160 mm Uni‑Q driver with two 19 mm tweeters, ensuring rich, immersive stereo with precise imaging and wide dispersion. Designed with weather-resistant fixings and a low-profile magnetic grille with ultra-thin bezel, it integrates seamlessly into any décor and is built to withstand moisture, making it suitable for bathrooms, covered outdoor areas, or premium residential installations.

Key Features:

• Series: KEF Ci C Series

• Category: Architectural Fit Speakers

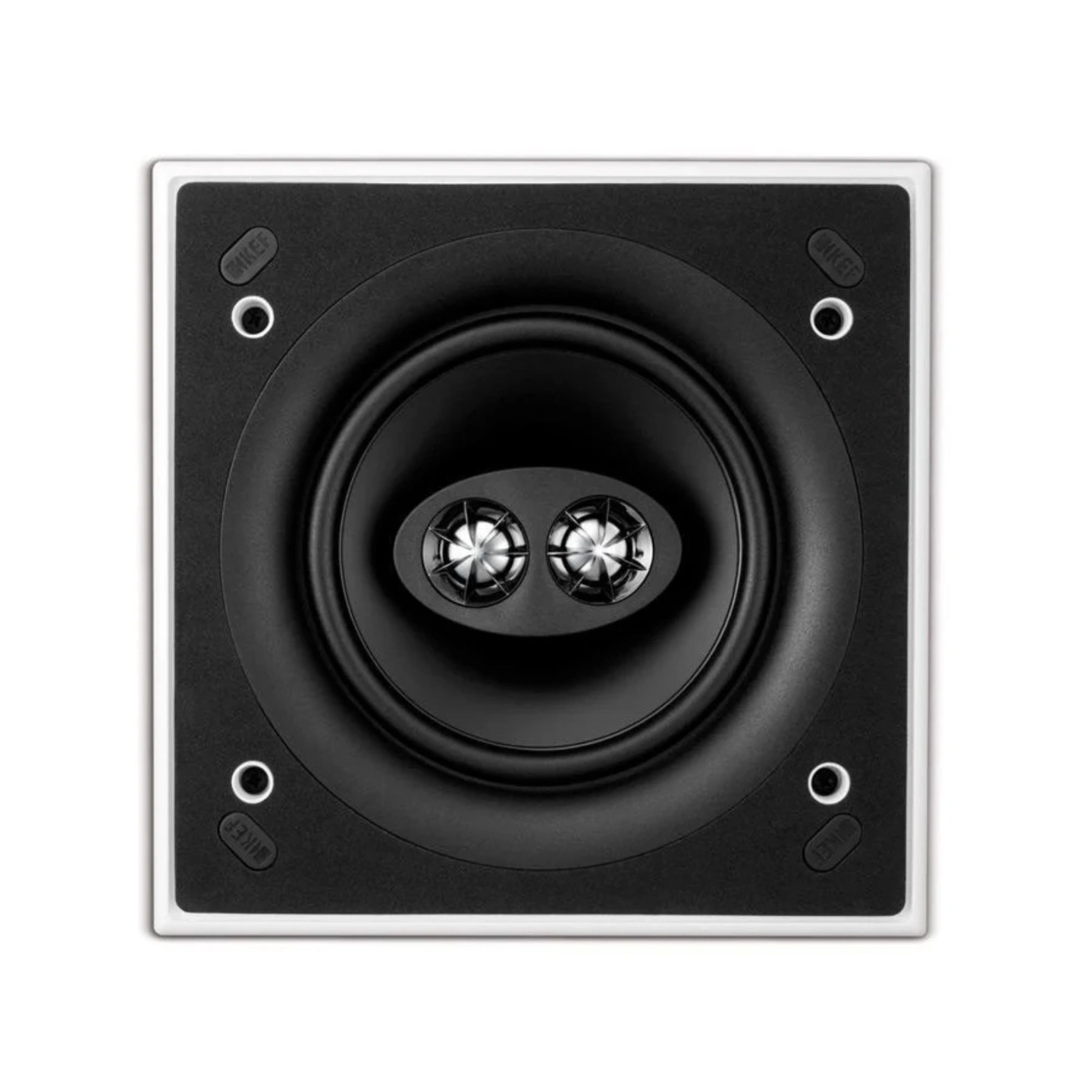

• Driver Configuration: Dual voice-coil 160 mm Uni‑Q woofer + 2× 19 mm aluminum-dome tweeters

• Stereo Capability: Dual stereo playback from a single square unit

• Frequency Response: 50 Hz–20 kHz (±6 dB) open-backed

• Impedance: 8 Ω nominal

• Sensitivity: 91 dB (2.83 V/1 m)

• Crossover Frequency: 3.2 kHz

• Recommended Amplifier Power: 10–80 W

• Coverage: Approx. 120° wide dispersion

• Dimensions: 223 × 223 × 90.5 mm (H×W×D)

• Cut-out Size: 194 × 194 mm square

• Mounting Depth: 84.5 mm from surface

• Max Ceiling Thickness: Up to 30 mm; Min thickness 3 mm

• Durability: UV-coated, moisture-resistant parts; suitable for damp areas

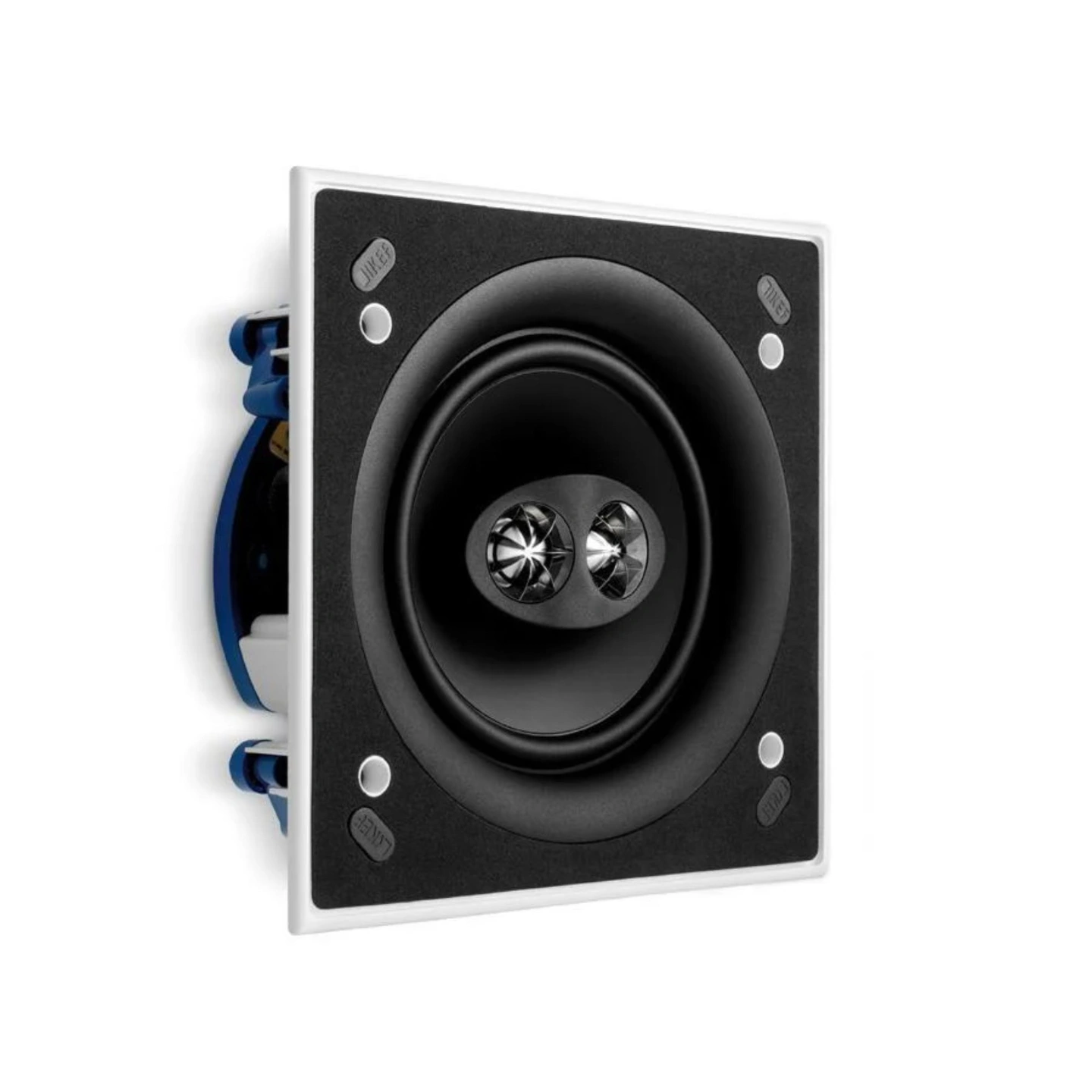

• Installation: Screw-down clamps with moisture-resistant fixings; grille is magnetic and paintable

• Weight: Approx. 1.8 kg

• Applications: Compact stereo zones, background music, bath/under-eaves installations
